Rashid Metals, located in Muscat, Oman, has earned a solid reputation as a reliable manufacturer and supplier of top-notch non-ferrous metal products, including Copper Nickel flat bars. The company is committed to delivering materials that not only meet international quality standards but also perform exceptionally well in tough industrial and marine settings. With state-of-the-art manufacturing facilities and a talented technical team, Rashid Metals guarantees precise dimensions, consistent metallurgical quality, and prompt delivery. Catering to clients throughout Oman and the GCC region, the company has established itself as a leader in technical expertise, dependable supply, and customer-centric solutions for engineering, chemical, and marine applications.

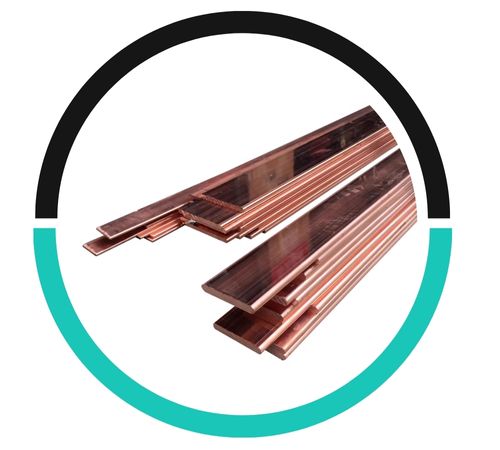

Copper Nickel flat bars are primarily made of copper and nickel, with small amounts of iron and manganese added in, providing outstanding corrosion resistance and mechanical strength. These flat bars boast impressive tensile and yield strength, high ductility, and robust resistance to seawater corrosion and biofouling. They also offer excellent thermal and electrical conductivity, along with good machinability and formability. This unique blend of properties makes Copper Nickel flat bars perfect for applications that demand both durability and reliable performance in harsh environments.
tandards: EN, DIN, JIS, ASTM, BS, ASME, AISI
Size: 5 mm to 200 mm
Length : 100 mm to 3660 mm Long
Specifications : ASTM / ASME SB 111
Form : Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc.
Finish : Bright, Polish & Black
| Grade | Mn | Cu | Pb | Fe | Ni | Zn |
|---|---|---|---|---|---|---|
| 90/10 | 1.0 max | 88.6 min | 0.5 max | 1.8 max | 9-11 max | 1 max |
| 70/30 | 1 max | 65.0 min | 0.5 max | 0.4-1.0 | 29-33 | 1 max |
| Grade | Melting point | Density | Tensilestrength | Elongation | Yieldstrength(0.2%Offset) |
|---|---|---|---|---|---|
| 90/10 | 2260°F | 8.8g/cm3 | 50000 PSi | 30% | 20000 PSi |
| 70/30 | 2260°F | 0.323 lb/in3 at 68°F | 50000 PSi | 30% | 20000 PSi |
| BD | Bright drawn | SRE | Slit rolled edge |
| CF | Cold finished | HRAP | Hot rolled annealed / pickled |
| CG | Centreless ground | HF | Hot finished |
| ST | Smooth turned | PR | Peeled / reeled |
| CD | Cold drawn | P | Polished |
| P&T | Peeled / turned | RT | Rough turned and peeled |
| Flat bar – metric sizes ( weights ) | |||
|---|---|---|---|
| Flat size | Standard length (metres) | KG’s / metre | Colour code |
| 16 x 3 | 6.0 | 0.38 | Blue |
| 13 x 3 | 6.0 | 0.31 | Blue |
| 13 x 5 | 6.0 | 0.46 | Orange |
| 16 x 5 | 6.0 | 0.64 | Orange |
| 20 x 3 | 6.0 | 0.48 | Blue |
| 16 x 8 | 6.0 | 1.03 | Red |
| 20 x 5 | 6.0 | 0.81 | Orange |
| 20 x 10 | 6.0 | 1.61 | Yellow |
| 20 x 6 | 6.0 | 0.97 | White |
| 25 x 3 | 6.0 | 0.60 | Blue |
| 25 x 6 | 6.0 | 1.21 | White |
| 10 x 3 | 6.0 | 0.24 | Blue |
| 25 x 5 | 6.0 | 1.01 | Orange |
| 25 x 8 | 6.0 | 1.61 | Red |
| 25 x 12 | 6.0 | 2.41 | Pink |
| 25 x 10 | 6.0 | 2.01 | Yellow |
| 32 x 3 | 6.0 | 0.77 | Blue |
| 32 x 6 | 6.0 | 1.55 | White |
| 32 x 5 | 6.0 | 1.29 | Orange |
| 32 x 8 | 6.0 | 2.06 | Red |
| 32 x 12 | 6.0 | 3.09 | Pink |
| 32 x 10 | 6.0 | 2.58 | Yellow |
| 40 x 3 | 6.0 | 0.97 | Blue |
| 40 x 6 | 6.0 | 1.93 | White |
| 40 x 5 | 6.0 | 1.61 | Orange |
| 40 x 8 | 6.0 | 2.58 | Red |
| 40 x 12 | 6.0 | 3.86 | Pink |
| 40 x 10 | 6.0 | 3.22 | Yellow |
| 40 x 16 | 6.0 | 5.15 | Grey |
| 50 x 3 | 6.0 | 1.21 | Blue |
| 40 x 20 | 6.0 | 6.14 | Green |
| 50 x 5 | 6.0 | 2.01 | Orange |
| 50 x 8 | 6.0 | 3.22 | Red |
| 50 x 6 | 6.0 | 2.41 | White |
| 50 x 10 | 6.0 | 4.02 | Yellow |
| 50 x 16 | 6.0 | 6.44 | Grey |
| 50 x 12 | 6.0 | 4.83 | Pink |
| 50 x 20 | 6.0 | 8.05 | Green |
| 65 x 3 | 6.0 | 1.57 | Blue |
| 50 x 25 | 6.0 | 10.1 | Purple |
| 65 x 5 | 6.0 | 2.62 | Orange |
| 65 x 8 | 6.0 | 4.18 | Red |
| 65 x 6 | 6.0 | 3.14 | White |
| 65 x 10 | 6.0 | 5.23 | Yellow |
| 65 x 16 | 6.0 | 8.37 | Grey |
| 65 x 12 | 6.0 | 6.28 | Pink |
| 65 x 20 | 6.0 | 10.5 | Green |
| 75 x 5 | 6.0 | 3.02 | Orange |
| 65 x 25 | 6.0 | 13.1 | Purple |
| 75 x 6 | 6.0 | 3.62 | White |
| 75 x 10 | 6.0 | 6.04 | Yellow |
| 75 x 8 | 6.0 | 4.83 | Red |
| 75 x 12 | 6.0 | 7.24 | Pink |
| 75 x 20 | 6.0 | 12.1 | Green |
| 75 x 16 | 6.0 | 9.66 | Grey |
| 75 x 25 | 6.0 | 15.1 | Purple |
| 90 x 5 | 6.0 | 3.62 | Orange |
| 75 x 40 | 6.0 | 24.1 | Yellow |
| 90 x 6 | 6.0 | 4.35 | White |
| 90 x 10 | 6.0 | 7.24 | Yellow |
| 90 x 8 | 6.0 | 5.79 | Red |
| 90 x 12 | 6.0 | 8.69 | Pink |
| 100 x 6 | 6.0 | 4.83 | White |
| 100 x 5 | 6.0 | 4.02 | Orange |
| 100 x 8 | 6.0 | 6.44 | Red |
| 100 x 12 | 6.0 | 9.66 | Pink |
| 100 x 10 | 6.0 | 8.05 | Yellow |
| 100 x 16 | 6.0 | 12.9 | Grey |
| 100 x 25 | 6.0 | 20.1 | Purple |
| 100 x 20 | 6.0 | 16.1 | Green |
| 100 x 50 | 6.0 | 40.2 | Green |
| 110 x 8 | 6.0 | 7.08 | Red |
| 110 x 6 | 6.0 | 5.31 | White |
| 110 x 10 | 6.0 | 8.85 | Yellow |
| 130 x 5 | 6.0 | 5.23 | Orange |
| 110 x 12 | 6.0 | 10.6 | Pink |
| 130 x 6 | 6.0 | 6.28 | White |
| 130 x 10 | 6.0 | 10.5 | Yellow |
| 130 x 8 | 6.0 | 8.37 | Red |
| 130 x 12 | 6.0 | 12.6 | Pink |
| 130 x 20 | 6.0 | 20.9 | Green |
| 130 x 16 | 6.0 | 16.7 | Grey |
| 130 x 25 | 6.0 | 26.2 | Purple |
| 150 x 6 | 6.0 | 7.24 | White |
| 150 x 5 | 6.0 | 6.04 | Orange |
| 150 x 8 | 6.0 | 9.66 | Red |
| 150 x 12 | 6.0 | 14.5 | Pink |
| 150 x 10 | 6.0 | 12.1 | Yellow |
| 150 x 16 | 6.0 | 19.3 | Grey |
| 150 x 25 | 6.0 | 30.1 | Purple |
| 150 x 20 | 6.0 | 24.1 | Green |
| 150 x 50 | 6.0 | 60.4 | Green |
| 180 x 6 | 6.0 | 8.69 | White |
| 180 x 5 | 6.0 | 7.24 | Orange |
| 180 x 10 | 6.0 | 14.5 | Yellow |
| 180 x 16 | 6.0 | 23.2 | Grey |
| 180 x 12 | 6.0 | 17.4 | Pink |
| 180 x 20 | 6.0 | 29.0 | Green |
| 200 x 6 | 6.0 | 9.66 | White |
| 180 x 25 | 6.0 | 36.2 | Purple |
| 200 x 8 | 6.0 | 12.9 | Red |
| 200 x 12 | 6.0 | 19.3 | Pink |
| 200 x 10 | 6.0 | 16.1 | Yellow |
| 200 x 16 | 6.0 | 25.7 | Grey |
| 200 x 25 | 6.0 | 40.3 | Purple |
| 200 x 20 | 6.0 | 32.2 | Green |
| 250 x 6 | 6.0 | 12.1 | White |
| 250 x 10 | 6.0 | 20.1 | Yellow |
| 250 x 8 | 6.0 | 16.1 | Red |
| Grade | UNS | Werkstoff Nr. |
| 90/10 | C70600 | 2.0872 |
| 70/30 | C71500 | 2.0882 |
Yes, Copper Nickel Flat Bars are customizable. They can be manufactured to specific dimensions, thicknesses, and lengths based on customer requirements. Additionally, they can be tailored for particular applications, such as varying alloy compositions or surface finishes, to meet performance needs in industries like marine, chemical, and power generation.
You’ll find Copper Nickel flat bars widely used in industries that require materials resistant to corrosion and built to last. Common applications include seawater piping, heat exchangers, condensers, marine hardware, and desalination plants. They’re also utilized in offshore platforms, chemical processing equipment, and shipbuilding, where exposure to harsh conditions is the norm. Thanks to their remarkable corrosion resistance, mechanical strength, and long-lasting durability, Copper Nickel flat bars are the go-to choice for critical industrial, marine, and engineering applications, ensuring reliable performance and extended service life even in challenging environments.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
