Rashid Metals, based in Muscat, Oman, has earned a solid reputation as a reliable manufacturer and supplier of top-notch nickel-based alloys, including Hastelloy bars and rods. The company is dedicated to providing products that not only meet international quality standards but also perform exceptionally well in harsh, corrosive, and high-temperature settings. With state-of-the-art manufacturing facilities and a talented technical team, Rashid Metals guarantees consistent metallurgical quality, precise dimensions, and timely deliveries. Catering to clients throughout Oman and the GCC region, the company has established itself as a leader in technical expertise, dependable supply, and customer-centric solutions for chemical, petrochemical, and industrial applications.

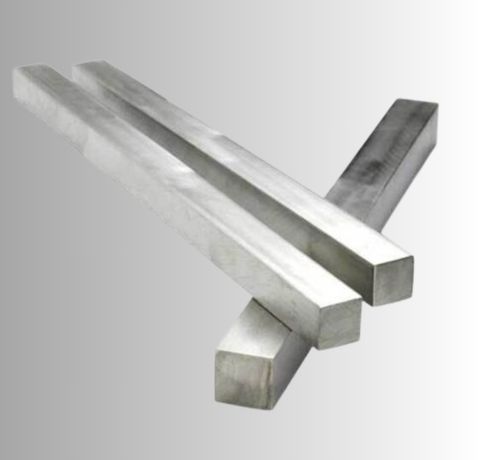

Hastelloy bars and rods are crafted from nickel-based alloys that include chromium, molybdenum, and iron, with the specific compositions varying by grade. This unique alloy structure offers remarkable resistance to corrosion, oxidation, pitting, crevice attack, and stress corrosion cracking. On the mechanical side, Hastelloy bars and rods boast high tensile and yield strength, outstanding toughness, and stability even at elevated temperatures. They maintain their mechanical integrity under extreme thermal and chemical conditions and are easily fabricated for precision engineering needs.
| Dimensions | DIN, EN, ASTM, JIS, ASME, BS, AISI |
|---|---|

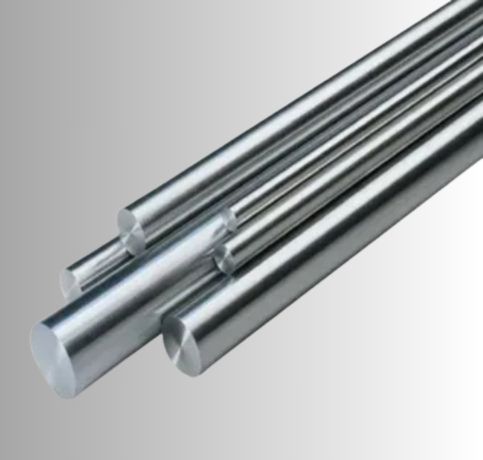

| Hastelloy Round Bar size | Diameter: 3-~800mm |

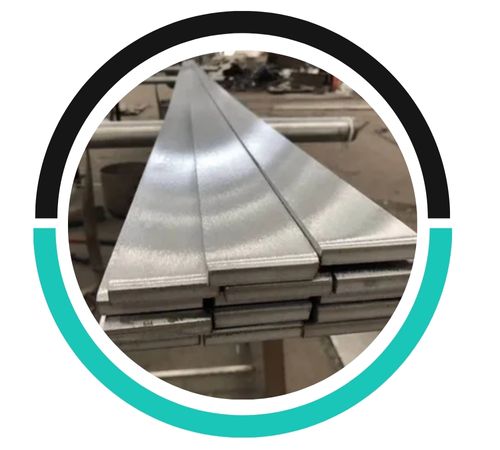

| Hastelloy Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Hastelloy Bar Angle size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |

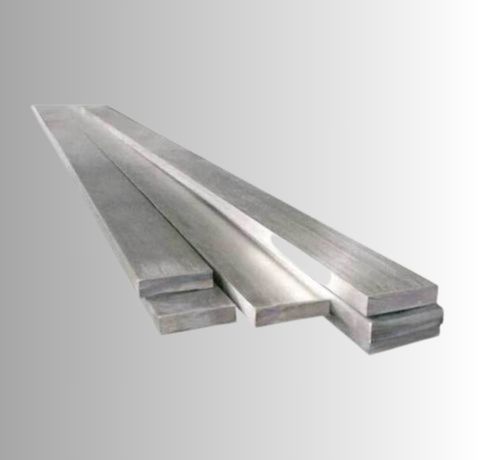

| Rectangular Bars Section | 3.0 to 12.0mm thickness |
| Billet Size | 1/2 to 495mm Diameter |
| Rectangles Size | 33 x 30mm to 295 x 1066mm |

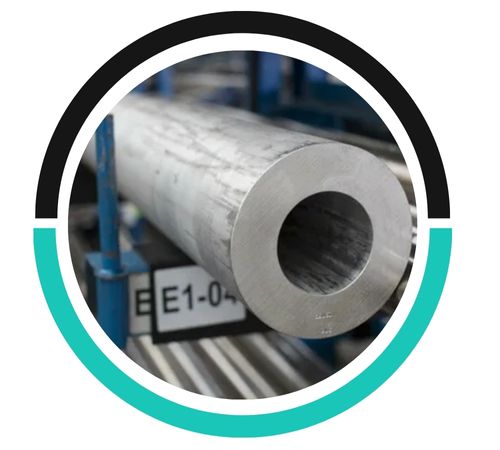

| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Dimensions | Diameter / Height |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |

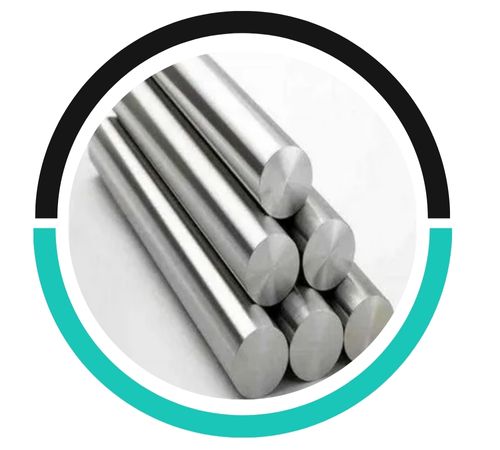

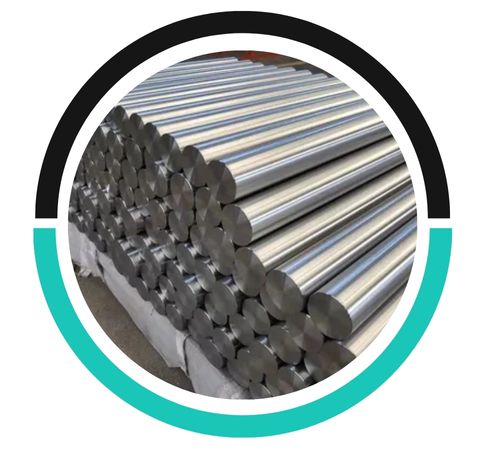

| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Surface | Hot Rolled Pickled, Bright, Sand Blasting Finished, Cold Drawn, Hairline,Polished |
| Condition | Hardened & tempered, annealed |
| Technique | Stainless Steel Cold Drawn, Hot Rolled, Forged Round Bar,Cold Rolled, Rod |
| Processing | Bar cutting to 650mm |

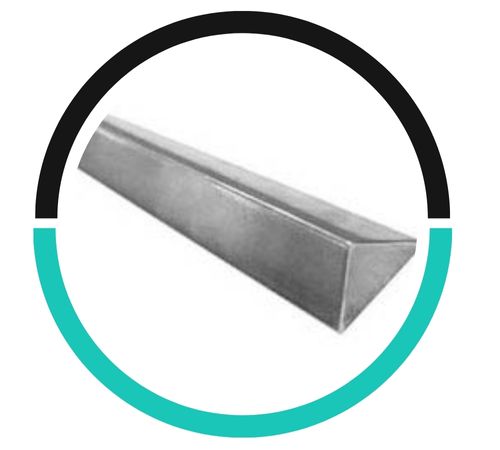

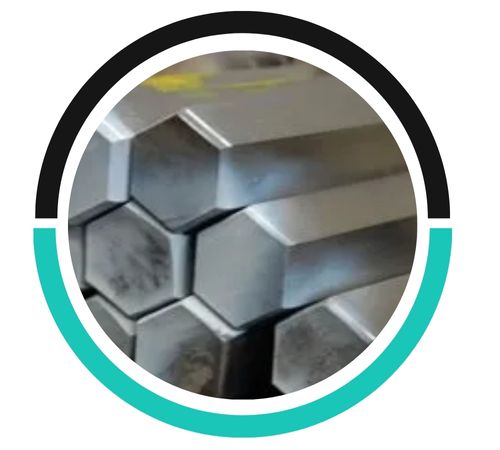

| Form | Rod, Round, Channel Bar, T-Bar, Flat Bar, Precision Ground Bar, Blocks, Square, Rings, Round Rod, Triangle, Hollow, Rectangle, Threaded, Hex (A/F), Profiles, Half Round Bar, Ingot, Billet, I/H Bar, Forging etc. |
| Grade | UNS | Cr | Mo | Fe | C≤ | Si≤ | Co≤ | Mn≤ | P≤ | S≤ |
| B2 | N10665 | 1.0max | 26.0-30.0 | 2.0max | 0.02 | 0.10 | 1.0 | 1.0 | 0.04 | 0.03 |
| B3 | N10675 | 1.0-3.0 | 27.0-32.0 | 1.0-3.0 | 0.01 | 0.10 | 3.0 | 3.0 | 0.03 | 0.01 |
| X | N06002 | 20.5-23.0 | 8.0-10.0 | 17.0-20.0 | 0.05-0.15 | 1.0 | 0.5-2.5 | 1.0 | 0.04 | 0.03 |
| C22 | N06022 | 20.0-22.5 | 12.5-14.5 | 3.0-6.0 | 0.015 | 0.08 | 2.5 | 0.5 | 0.02 | 0.02 |
| C2000 | N06200 | 22.0-24.0 | 15.0-17.0 | 3.0max | 0.01 | 0.08 | 2.0 | 0.5 | 0.025 | 0.01 |
| C276 | N10276 | 14.5-16.5 | 15.0-17.0 | 4.0-7.0 | 0.01 | 0.08 | 2.5 | 1.0 | 0.04 |
| Mechanical properties | Tensile, min, ksi[MPa] | Yield, min, ksi[MPa] | Elongation, %(min) |
| B2 | 110[760] | 51[350] | 40 |
| B3 | 110[760] | 51[350] | 40 |
| X | 100[690] | 40[276] | 35 |
| C22 | 100[690] | 45[310] | 45 |
| C2000 | 100[690] | 45[310] | 45 |
| C276 | 100[690] | 41[283] | 40 |
Yes, Hastelloy Bars are highly corrosion-resistant, making them ideal for harsh environments, including chemical processing and marine applications. They resist pitting, crevice corrosion, and stress corrosion cracking effectively.
Yes, Hastelloy Rods can be customized in size and length to meet specific industry requirements. Their versatility ensures suitability for diverse applications.
Hastelloy bars perform exceptionally in high-temperature environments, offering thermal stability, oxidation resistance, and strength retention. They are ideal for demanding applications like chemical processing and aerospace.
These Hastelloy bars and rods find their place in industries that demand exceptional corrosion resistance and high mechanical strength. You’ll commonly see them in chemical processing equipment, heat exchangers, reactors, valves, pumps, and pressure vessels. They’re also utilized in the oil and gas, petrochemical, power generation, and marine sectors, where exposure to aggressive chemicals and high temperatures is a regular occurrence. Thanks to their durability, thermal stability, and resistance to tough environments, Hastelloy bars and rods are perfect for critical components in demanding industrial applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
