Incoloy Round Bars

Incoloy Round Bars are crafted for environments where strength, heat resistance, and corrosion protection are non-negotiable. Built from high-performance nickel alloys, these bars stand firm in conditions that push regular metals past their limits. Incoloy is known for its ability to survive aggressive chemicals, soaring temperatures, and high mechanical stress without losing its structural stability. From power plants to refineries and aerospace systems, these bars deliver unwavering performance. Engineers trust Incoloy Round Bars because they provide durability, precision, and long service life in some of the toughest industrial zones in the world.

Incoloy Round Rods Exporter in OMAN, Incoloy Round Bars Stockist in Muscat, Incoloy Round Bar Supplier in OMAN, Incoloy Cold Drawn Round Bars Distributor in OMAN, Incoloy Round Rods Stockist Bawshar, Incoloy Round Bars Price in Bawshar, Incoloy Alloy Round Bar & Rods Dimensions Salalah, Incoloy Bright Round Bars Supplier in OMAN, Incoloy Alloy Round Bar Supplier in Salalah, Incoloy Alloy Cold Drawn Round Rods Exporter in Seeb

Bright Incoloy Round Bars

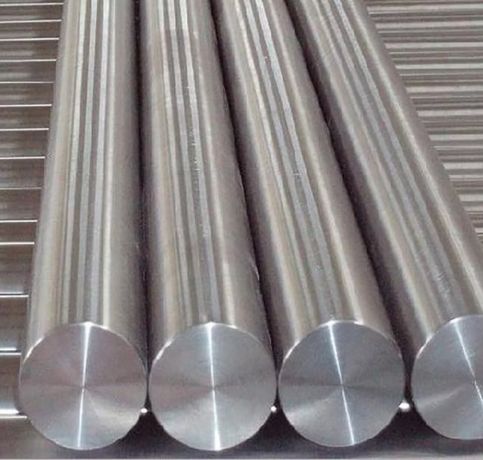

Polished Incoloy Alloy Round Rods

Cold-Finished Incoloy Round Bars

What is Incoloy Round Bars?

Incoloy Round Bars are made from a robust combination of nickel, iron, and chromium, strengthened with additions of titanium, molybdenum, copper, and niobium. This alloy blend gives them remarkable resistance to oxidation and carburization at high temperatures. They maintain superior tensile strength, creep resistance, and stability even under constant thermal cycling. Their mechanical properties stay consistent in both acidic and alkaline environments, making them ideal for corrosive applications. Incoloy’s exceptional hardness and fatigue resistance allow it to handle heavy mechanical loads while maintaining dimensional accuracy and long-term dependability.

Incoloy Alloy Polished Round Bars Size Chart in OMAN, Incoloy Bright Round Rods Exporter in Ibri, Incoloy Alloy Round Rods Manufacturer in Bawshar, Incoloy Round Bars Distributor in OMAN, Incoloy Alloy Round Rods Dealer in Seeb, Incoloy Alloy Round Bars Size Chart in OMAN, Incoloy Round Bars Stockist in Salalah, Incoloy Round Rods Price List Seeb, Incoloy Bar/Rods Weight Chart

Incoloy Round Bars Specifications

Dimensions	BS, DIN, EN, AISI, JIS, ASME, ASTM
Size of Round Bars	Thickness: 2 milimeter-100 milimeter
Surface	Bright, Hot Rolled Pickled, Hairline, Cold Drawn, Sand Blasting Finished, Polished
Processing	cutting to 650 milimeter
Tolerance	H9, K9, H8, H12, K12, H11, H13, K10, K11, H10, or as per need
Finish	centreless ground, Cold (bright) drawn, smooth turned, hot rolled, slit rolled edge, peeled, Rough Turned, hot rolled annealed, Polish, Bright, Centreless Ground, Grinding & Black
Method	Cold Drawn, Hot Rolled, Cold Rolled Rod, Forged Round Bars
Condition	annealed, Hardened & tempered

You Need Our Support, to Have Any Projects?

Test Certificate

Why Rashid Metals?

Packaging

Incoloy Round Bars Physical Properties

Density	g/cm3	7.94
Density	lb/in.3	0.287
Melting Range	°F	2475 – 2525
Melting Range	°C	1357 – 1385

Incoloy Round Bars Mechanical Properties

Condition & Size	Tensile Strength	Yield Strength (0.2% Offset)	Elongation	Reduction of Area	Hardness
Condition & Size	MPa, min	MPa, min	%, min	%, min	Rockwell, max
Hot worked, as-hot-worked	550	240	25	…	…
Cold-worked and hot-worked, annealed	515	205	30	…	…

Incoloy Bars & Rod Size Chart

US Bar		Metric		Japanese		Canadian/ASTM
Diam. (Inch)	Bar Size	Diam. (mm)	Bar Size	Diameter (mm)	Bar Size	Diameter (mm2)	Bar Size
0.250	#2	5	5	6	6	100	10M
0.375	#3	5.5	5.5	10	10	200	15M
0.500	#4	6	6	13	13	300	20M
0.625	#5	7	7	16	16	500	25M
0.750	#6	8	8	19	19	700	30M
0.875	#7	9	9	22	22	1000	35M
1.000	#8	10	10	25	25	1500	45M
1.125	#9	11	11	29	29	2500	55M
1.250	#10	12	12	32	32
1.375	#11	14	14	35	35
1.500	#12	16	16	38	38
1.625	#13	18	18	41	41
1.750	#14	20	20	44	44
1.875	#15	22	22	48	48
2.000	#16	25	25	51	51
2.250	#18	28	28	57	57
		32	32
		36	36
		40	40
		44	44
		50	50

Incoloy Round Bars Weight Chart

Size	kilogram / Meter	kilogram / Foot	Size	kilogram / Meter	kilogram / Foot	Size	kilogram / Meter	kilogram / Foot
1/8″	0.062	0.019	22mm	2.979	0.908	3-1/4″	41.996	12.800
3mm	0.055	0.017	20mm	2.470	0.753	3″	35.762	10.900
4mm	0.098	0.030	24mm	3.543	1.080	3-3/4″	55.780	17.001
5/32″	0.095	0.029	7/8″	3.038	0.926	3-1/2″	48.772	14.850
5mm	0.154	0.047	1″	3.970	1.210	4-1/4″	72.249	21.908
3/16″	0.141	0.043	25mm	3.871	1.180	4″	63.340	19.306
6mm	0.223	0.068	27mm	4.490	1.368	4-3/4″	90.249	27.366
7/32″	0.190	0.058	26mm	4.170	1.271	4-1/2″	80.340	24.4487
7mm	0.298	0.091	30mm	5.548	1.691	5-1/2″	121.000	36.690
1/4″	0.249	0.076	1-1/8″	5.033	1.534	5″	99.940	30.461
8mm	0.398	0.120	32mm	6.314	1.894	6-1/2″	167.630	51.093
5/16″	0.387	0.118	1-1/4″	6.349	1.924	6″	143.900	43.860
3/8″	0.557	0.170	35mm	7.553	2.390	7-1/2″	225.000	68.226
9mm	0.498	0.152	1-3/8″	7.550	2.303	7″	196.000	59.432
11mm	0.748	0.228	38mm	8.903	2.792	10″	397.140	121.048
10mm	0.620	0.189	36mm	7.999	2.438	8″	254.55	77.586
12mm	0.889	0.271	40mm	9.872	3.009
7/16″	0.761	0.232	1-1/2″	8.951	2.715
13mm	1.043	0.318	1-3/4″	12.179	3.712
1/2″	0.994	0.303	1-5/8″	10.449	3.200
9/16″	1.256	0.383	1-7/8″	13.977	4.260
14mm	1.207	0.368	45mm	12.555	3.807
5/8″	1.551	0.473	50mm	15.414	4.698
15mm	1.391	0.424	48mm	14.205	4.330
17mm	1.791	0.543	2-1/8″	17.963	5.475
16mm	1.578	0.481	2″	15.906	4.848
18mm	2.001	0.610	60mm	22.205	6.768
11/16″	1.880	0.573	2-1/4″	20.128	6.135
3/4″	2.237	0.682	2-3/8″	22.435	6.838
			2-1/2″	24.856	7.576
			2-5/8″	27.409	8.354
			2-3/4″	30.083	9.169	–	–	–

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Incoloy Round Bars Types

Incoloy Round Rods Dealer in Seeb, Incoloy Round Bars Manufacturer in Seeb, Incoloy Alloy Cold Drawn Round Bar Dimensions Ibri, Incoloy Round Bars Size Chart, Incoloy Alloy Rods Price in Bawshar, Stockist of Incoloy Round Bars in Salalah, Incoloy Round Rods Supplier in OMAN, Alloy Incoloy Round Bar Price List in Muscat, Incoloy Alloy Round Bar and Rods Weight Chart, Incoloy Alloy Round Bars & Rods Exporter in Ibri

Frequently Asked Questions (FAQ)

What are the Key Benefits of Using Incoloy Round Bars?

Incoloy Round Bars offer superior corrosion resistance, high-temperature strength, and durability, making them ideal for demanding industrial environments like chemical processing and marine applications.

Can Incoloy Round Bars be Customized for Specific Applications?

Yes, Incoloy Round Bars are available in various grades, dimensions, and finishes, ensuring they can be tailored to meet specific project and industry requirements.

Are Incoloy Alloy Bars/Rods Customizable?

Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@rashidmetals.com

Incoloy Round Bars Uses

Incoloy Round Bars are widely used in industries that operate under relentless heat, pressure, and chemical exposure. Refineries rely on them for furnace equipment, reformer tubes, and heat-treating systems. Chemical processing plants use them for reactors, piping, and components that face acidic and high-temperature environments daily. In the power sector, they play a crucial role in boilers, steam systems, and superheaters. Aerospace and marine industries trust them for critical parts that must stay strong in extreme environments. Whenever reliability, longevity, and high-temperature strength are essential, Incoloy Round Bars rise to the challenge effortlessly.
